The Story
Description

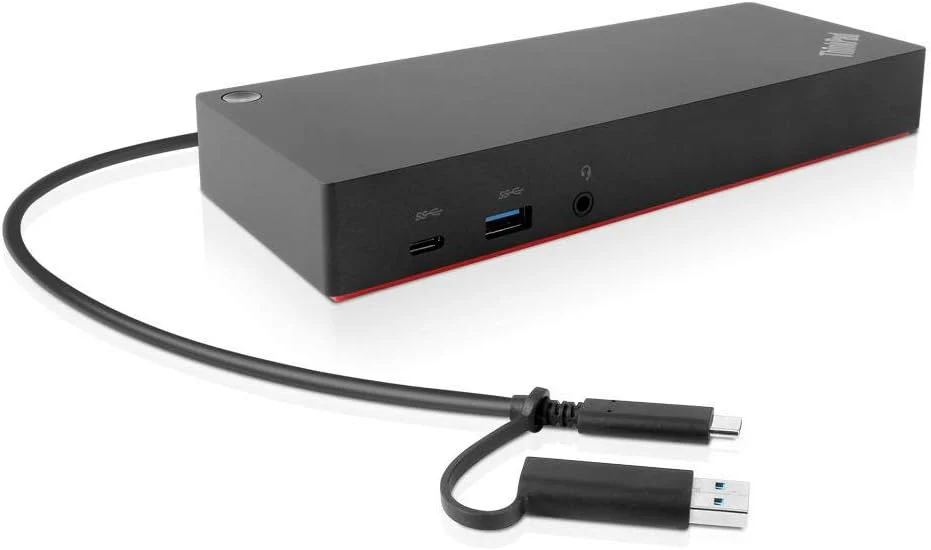

The ThinkPad Hybrid USB-C with USB-A dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability, like PXE boot and MAC address pass-through, the ThinkPad Hybrid USB-C with USB-A docking station offers three high-speed USB 3.1 ports and includes a USB-C to USB-A adapter to provide port replication to non-Lenovo or USB-C laptop computers. This ThinkPad Hybrid dock also supports dual monitor setups, up to dual UHD 4K resolution, and rapid charging for ThinkPad notebooks.
Ā
Tech Specs
| Color | Black |
| Max Number of External Monitors | 2 |
| Weight | 480 g (1.05 lbs) |
| Refresh Rate | DisplayPort: 3840 x 2160 @ 60 Hz; HDMI: 3840 x 2160 @ 60 Hz; Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz;; "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop. |
| AC Plug | UK Standard Plug Type G |
| Hardware Requirements | Machine with full function USB-C port or USB 3.0 Port |
| Output Power | 90 W |
| Brand | ThinkPad |
| OS Requirements | Windows 10, Windows 7 |
| Agency Approvals | BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Kvalitet, TUV Mark, Ukraine DoC, VCCI |
| Audio Ports | 1 x 3.5 mm Stereo/Mic Combo Port |
| Charging Port | ThinkPad Slim-tip Port |
| USB Ports | 1 x USB-C (Data, 5V/3A power); 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on); 2 x USB 2.0 |

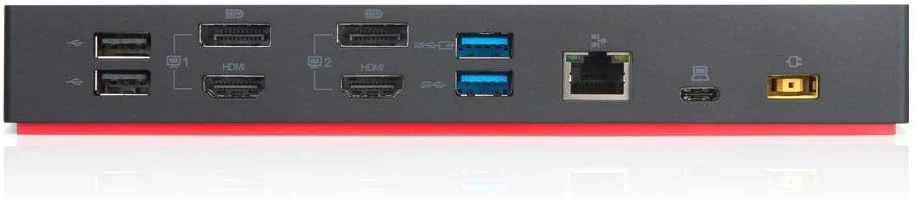

| Video Ports | 2 x DisplayPort 1.2; 2 x HDMI |
| Package Type | Brown box |
| Warranty Period | 3 Years |
| Maximum Operating Temperature | 35 degrees Celsius (95 degrees Fahrenheit) |
| Minimum Operating Temperature | 0 degrees Celsius (32 degrees Fahrenheit) |
| Driver Needed | Preloaded in select ThinkPad laptops |
| Input Power | 135 W |
| Power Button | Yes |
| Power Delivery | Yes |

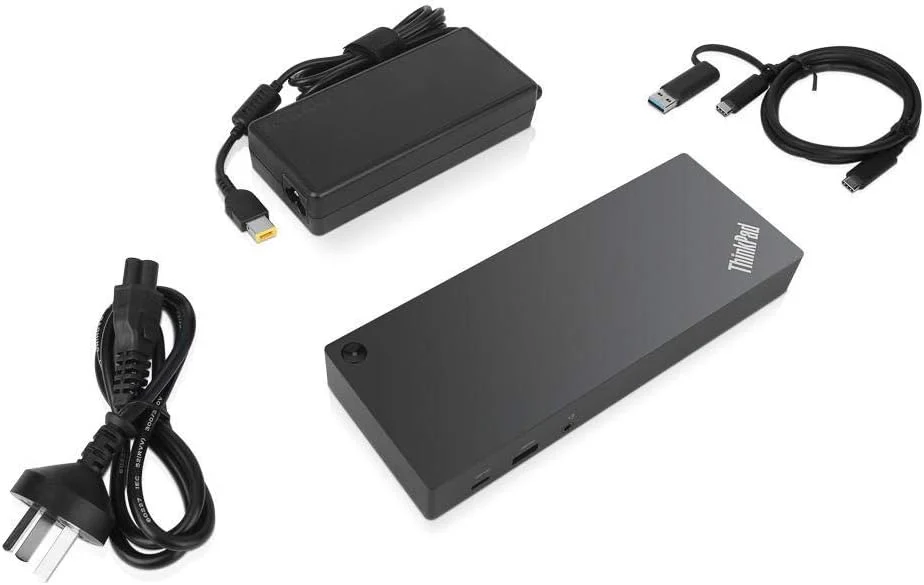

| Shipment Group | ThinkPad Hybrid USB-C with USB-A Dock;ThinkPad Slim-tip 135 W AC power adapter;1m USB-C Cable with USB-A Adapter;Power cord;Product information, safety and warranty poster |
| Compatibility | E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260 |
| Supported Operating Systems | OS Independent |
